用途： 適用于軟/硬導體線、電子線的絞合。如：裸銅線、漆包線、鍍錫線、銅包鋁、合金線；電源線、電話線、音頻線、視頻線、汽車線、網絡線等。
USE： Suitable for twisting of soft/hard conductor wires and electronic wires. Such as: bare copper wire, enameled wire, tinned wire, copper clad aluminum, alloy wire; power cord, telephone wire, audio wire, video wire, car wire, network wire, etc.

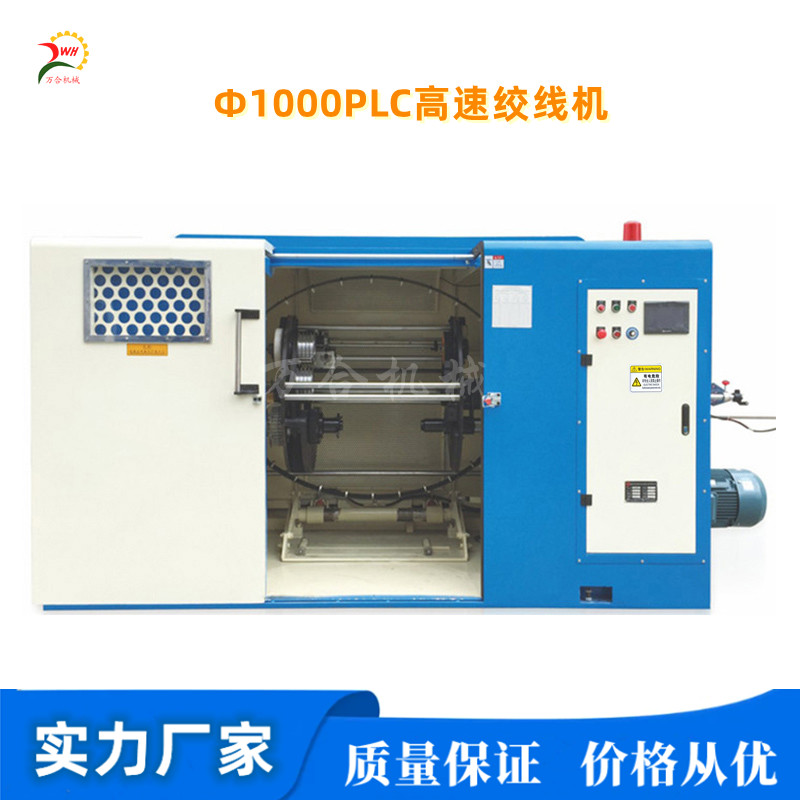

Φ800~1000㎜高速絞線機
Φ800~1000㎜High speed stranding
一、用途Application：
適用于軟/硬導體線、電子線的絞合。如：裸銅線、漆包線、鍍錫線、銅包鋁、合金線；電源線、電話線、音頻線、視頻線、汽車線、網絡線等。
Full automatic double-twist type wire twist machine, strengthening design of the traction system, can twist10~16mm2 copper wire, it can also apply on the core wire pair twisted or small core wire cabling.
二、技術參數Technical Parameters：
型 號 Model | WH-HST-800標準電箱/觸摸屏/PLC Standard electric box/Touch screen/PLC（1200RPM/min） | WH-HST-1000標準電箱/觸摸屏/PLC Standard electric box/Touch screen/PLC（800RPM/min） |
驅動馬達 Drive motor | 20HP Motor+ Frequency adjust speed | 30HP Motor+ Frequency adjust speed |
單根線徑 Diameter of each wire | Φ0.38~1.0㎜ | Φ0.38~2.14㎜ |
絞合截面積 Stranded cross-sectional area | 0.25~10mm2 | 1.5~16mm2 |
絞 距 Twist pitch range | 標準絞距Standard lay length：23.74～142.78mm 加大絞距Maximum lay length：48.67~256.18mm | 35~200㎜ |
線盤裝銅量 Weight of conductor on reel | MAX900㎏ | MAX1200㎏ |
機械尺寸 Mechanical Dimensions | L3675×W1550×H1650㎜ | L4475×W2200×H2300㎜ |
機械重量 Machine net weight | 5000㎏ | 8000㎏ |
絞 向 Twisting direction | 左右絞向均勻，“S” or “Z” direction | |
使用電源 Voltage frequency | 50HZ/380V（三相五線Three-phase five-wire） | |
排線裝置 Cable device | 加強型精密光桿排線器，排輻、排距均可調整 Enhanced polished rod cable arranging device, row spacing and row width can be adjusted at will | |
收線張力 Take-up tension | 磁粉離合器控制張力、大小可調節，被拉線不變型。 The magnetic powder clutch controls the tension, the size can be adjusted, and the drawn wire does not change shape. | |
保護功能 Protective function | ⑴長度到達設定參數自動停機 The length meter will automatically stop when it reaches the set parameters; ⑵設備內部和外部斷線，自動停機報警The internal and external disconnection of the equipment will automatically stop and alarm; ⑶安全罩打開自動停機 It will stop automatically when the lift is incorrect ⑷升降不正確自動停機 It will stop automatically when the safety cover is opened。 ⑸紅色警示燈：故障停機 Red warning light: shutdown due to failure | |
