用途： 適用于軟/硬導體線、電子線的絞合。如：裸銅線、漆包線、鍍錫線、銅包鋁、合金線；電源線、電話線、音頻線、視頻線、汽車線、網絡線等。
USE： Suitable for twisting of soft/hard conductor wires and electronic wires. Such as: bare copper wire, enameled wire, tinned wire, copper clad aluminum, alloy wire; power cord, telephone wire, audio wire, video wire, car wire, network wire, etc.

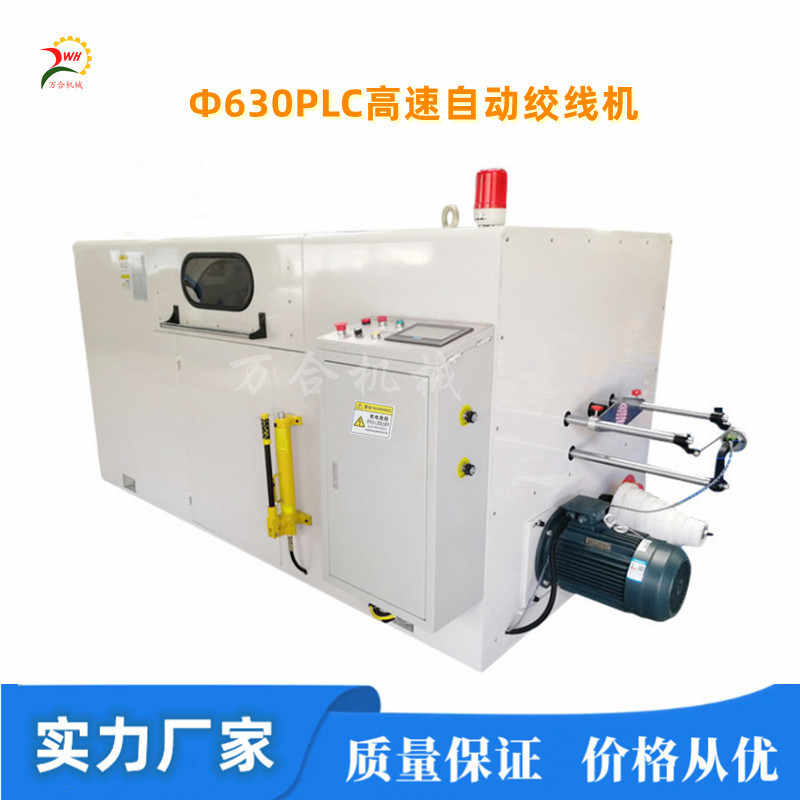

Φ630高速絞線機
Φ630㎜High speed stranding
一、用途Application：
適用于軟/硬導體線、電子線的絞合。如：裸銅線、漆包線、鍍錫線、銅包鋁、合金線；電源線、電話線、音頻線、視頻線、汽車線、網絡線等。
Full automatic double-twist type wire twist machine, strengthening design of the traction system, can twist6mm2 copper wire, it can also apply on the core wire pair twisted or small core wire cabling.
二、技術參數Technical Parameters：
型 號 Model | WH-HST-630 （1800RPM/min） | WH-HST-630 PLC 觸摸屏Touch screen （2200RPM/min） | WH-HST-630加強型 （1800RPM/min） |
驅動馬達 Drive motor | 10HP Motor+ Frequency adjust speed | 10HP Motor+ Frequency adjust speed | 15HP Motor+ Frequency adjust speed |
單根線徑 Diameter of each wire | Φ0.10~1.0㎜ | ||
絞合截面積 Stranded cross-sectional area | 0.20~6mm2 | ||
絞 向 Twisting direction | 左右絞向可調，“S” or “Z” direction | ||
線盤裝銅量 Weight of conductor on reel | 350~450㎏ | ||
機械尺寸 Mechanical Dimensions | L2690×W1300×H1400 | ||
機械重量 Machine net weight | 3850㎏ | ||
使用電源 Voltage frequency | 50HZ/380V（三相五線Three-phase five-wire） | ||
絞 距 Twist pitch range | 標準絞距Standard lay length：11.46～62.67mm 加大絞距Maximum lay length：25.39~138.77mm | ||
排線裝置 Cable device | 加強型精密光桿排線器，排輻、排距均可調整 Enhanced polished rod cable arranging device, row spacing and row width can be adjusted at will | ||
收線張力 Take-up tension | 磁粉離合器控制張力、大小可調節，被拉線不變型。 The magnetic powder clutch controls the tension, the size can be adjusted, and the drawn wire does not change shape. | ||
保護功能 Protective function | ⑴長度到達設定參數自動停機 The length meter will automatically stop when it reaches the set parameters; ⑵設備內部和外部斷線，自動停機報警The internal and external disconnection of the equipment will automatically stop and alarm; ⑶安全罩打開自動停機 It will stop automatically when the lift is incorrect ⑷升降不正確自動停機 It will stop automatically when the safety cover is opened。 ⑸紅色警示燈：故障停機 Red warning light: shutdown due to failure
| ||
